Access your entire home off-grid or in a blackout with a custom package.
Power all the energy consuming items in the AI+ 15K.20 package plus a pool pump or any other items needed to power in a large home of any size
Starting at $30,000
Package Includes
6 Batteries
(30+ kWh)
3 Storz Wall Mount Battery Cabinets
2 15K Inverters
(Up to 39 kW PV DC)
(Up to 38.4 kW PV AC)
Solar Ready | AC & DC Coupling
Generator Ready
Best Used for

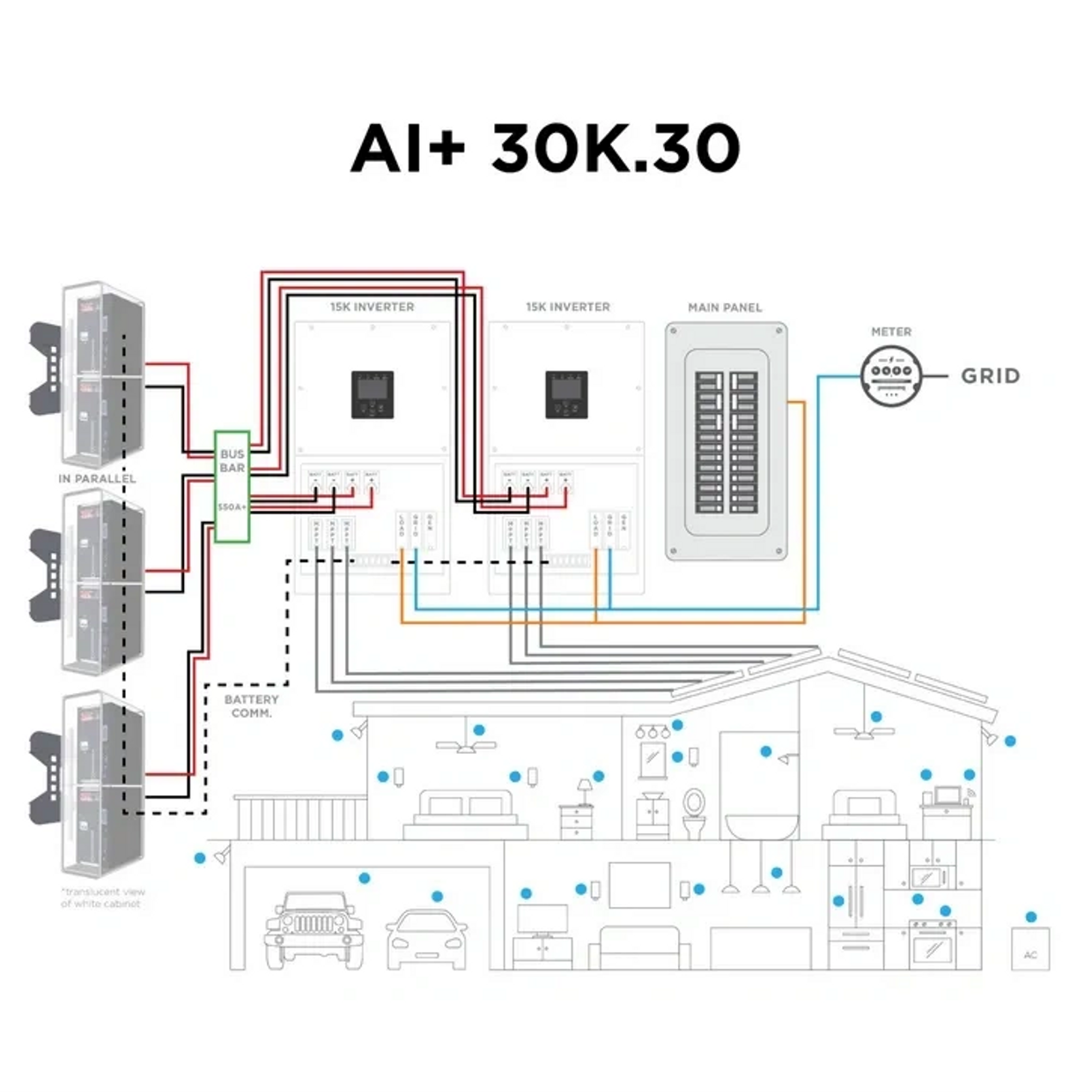

See the power of the AI+ 30K.30 package by voltage.120 VOLTS
240 VOLTS
ENERGY CAPACITY
30+ kWh
100% depth of discharge
98% round trip efficiency
POWER
30 kW continuous
48 kW peak
AC/DC coupling
Generator Ready
6 MPPT’s (solar ready)
4 Battery Lugs
Built-in ATS
SIZE & WEIGHT
Battery:
Battery Cabinet:
15K Inverter:
BATTERY CHEMISTRY
Lithium-Iron Phosphate (LFP)
Charge Temp Range: 32°F to 131°F
Discharge Temp Range: 14°F to 131°F
(best between 77°F to 87°F)
BATTERY WARRANTY
INVERTER WARRANTY
CERTIFICATIONS
UL 1642, UN 38.3, ANSI/CAN/UL-1973, UL 9540, UL 9540A, CA-SGIP, CA Rule 21, CEC, OGPe, PREPA, UL 1741 CRD, ETL/Intertek tested & listed
EXPANDABLE
